Loudspeaker YD50-14-8N12.5M 2 Inch 50mm 8ohm 0.5W Mini Waterproof Speaker Parts-ESUTECH

Quantity:
  • YD50-14-8N12.5M
  • EST

2

                         Model                      YD50-14-8N12.5M

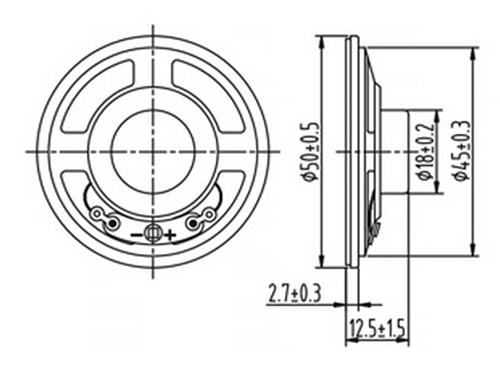

Diameter:

Φ50mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

650±20%Hz

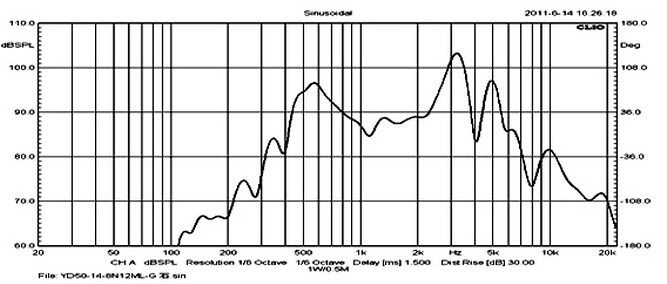

Response:

Fo-4kHz

S.P.L:

85±3dB/W/M

Magnet Size:

Φ12.5×2(NdFeB)

Net weight:

30g

3
