Loudspeaker YD57-11-8F40C 2.2 Inch Paper Cone full range Doorbell Loudspeaker Unit for Repair 8ohm 0.5W-ESUNTECH

Quantity:
  • YD57-11-8F40C
  • EST

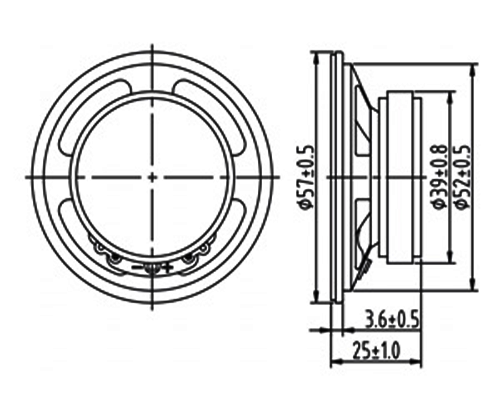

2

                             Model                   YD57-11-8F40C

Diameter:

57mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

2.0w

Maximum Power:

3.0w

Impedance:

8±15%

Voice coil:

13.3mm

Fo:


Response:

Fo-20kHz

S.P.L:

84*3dB/W/M

Magnet Size:

40*19*6( Ferrite)

Net weight:

79g

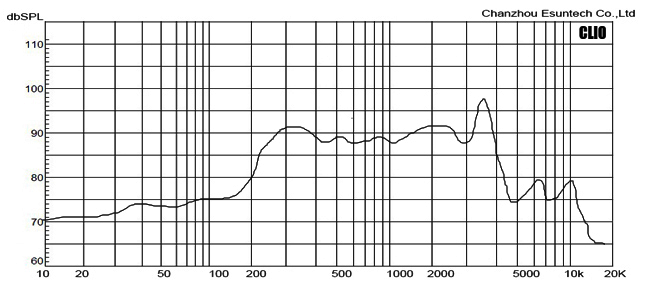

3
