Loudspeaker YD57-12A-4N12.5MX 2.25 Inch 57mm Internal Magnet Mid Range Small Waterproof Speaker Drivers-ESUTECH

Quantity:
  • YD57-12A-4N12.5MX
  • EST

2

                          Model                  YD57-12A-4N12.5MX

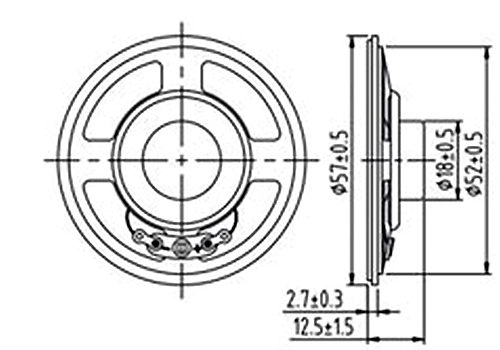

Diameter:

 Φ57mm

Cone Material:

 Mylar

Edge:

 Mylar

Nominal Power:

 1.0w

Maximum Power:

2.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

450±20%Hz

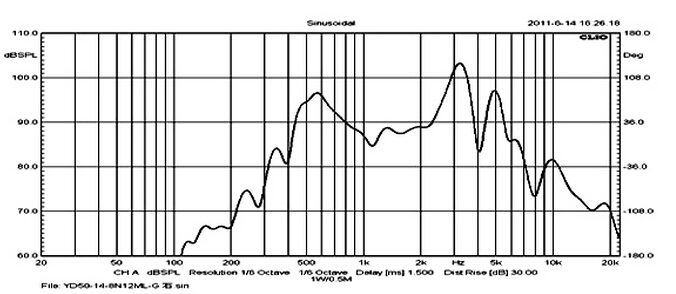

Response:

  Fo-4.5kHz

S.P.L:

83±3dB/W/M

Magnet Size:

  Φ12.5×2(NdFeB)

Net weight:

 18g

3
