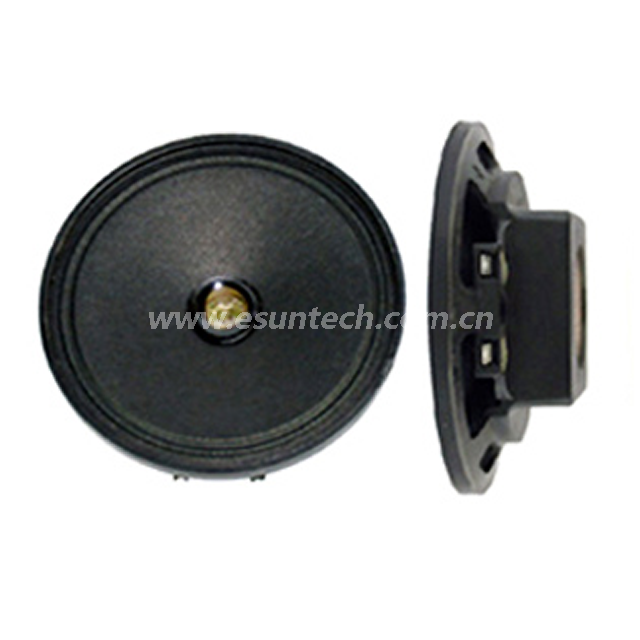

Loudspeaker YD66-22-8F28.5P 2.5 Inch Plastic Frame Loudspeaker Driver 8ohm 1 watt -ESUNTECH

Quantity:
  • YD66-22-8F28.5P
  • EST

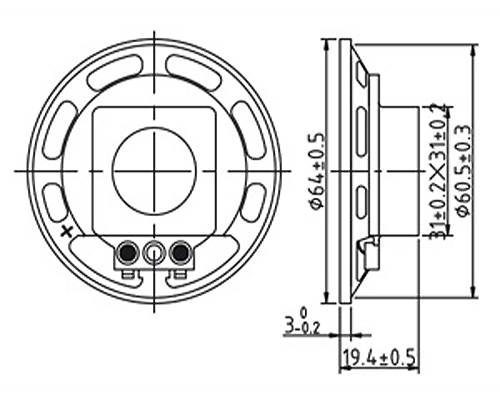

2

                      Model                  YD66-22-8F28.5P

Diameter:

Φ66mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

1.0w

Maximum Power:

2.0w

Impedance:

8±15%Ω

Voice coil:

Φ10.3mm

Fo:

340±20%Hz

Response:

Fo-3.5kHz

S.P.L:

86±3dB/W/M

Magnet Size:

Φ28.5×Φ12.5×5(Ferrite)

Net weight:

48g

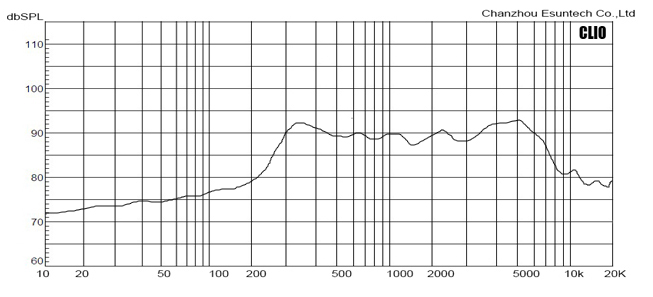

3
