Loudspeaker YD77-01-8F32P 3 Inch Full Range Round Loudspeaker Driver Raw Speaker Parts-ESUNTECH

Quantity:
  • YD77-01-8F32P
  • EST


2

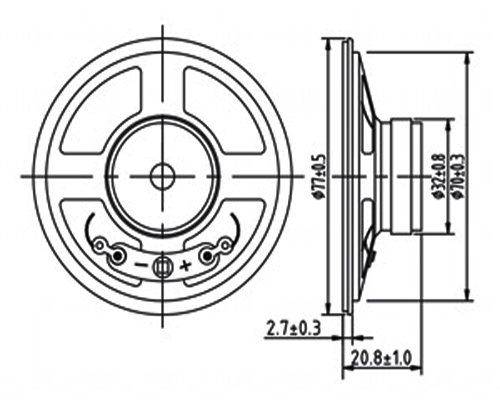

                            Model                      YD77-01-8F32P

Diameter:

Φ77mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

350±20%Hz

Response:

Fo-4.5kHz

S.P.L:

88±2dB/1.0W/0.5M

Magnet Size:

Φ32×Φ18×6(Ferrite)

Net weight:

60g
