Loudspeaker YD77-1-8F45M-R 77mm 3inch Mind Range Waterproof Speaker Drivers-ESUTECH

Quantity:
  • YD77-1-8F45M-R
  • EST

2

                          Model                   YD77-1-8F45M-R

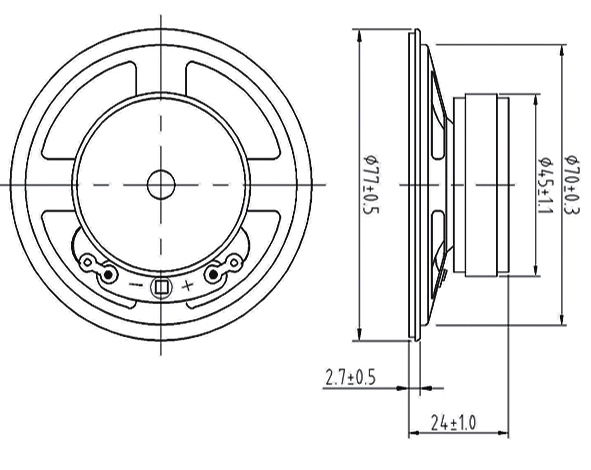

Diameter:

Φ77mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

350±20%Hz

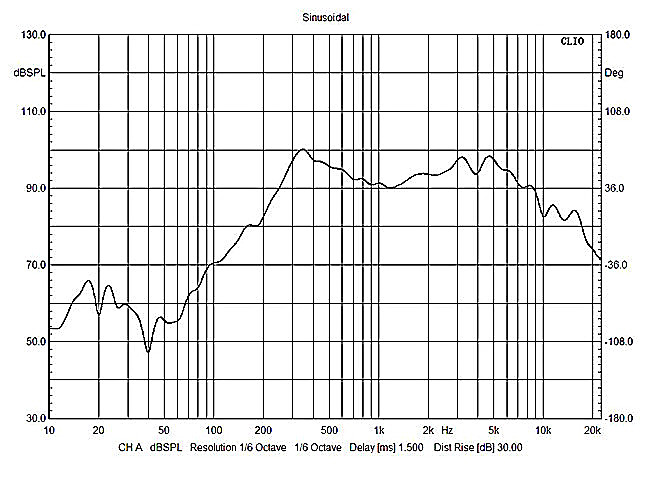

Response:

Fo-4.5kHz

S.P.L:

82±3dB/W/M

Magnet Size:

Φ45×Φ18×6(Ferrite)

Net weight:

56.5g
