Loudspeaker YD77-2-F32UT 3 Inch 4/8/16/32ohm Full Range Round Loudspeaker Driver Raw Speaker Parts with Magnet Cover-ESUNTECH

Quantity:
  • YD77-2-F32UT
  • EST

2

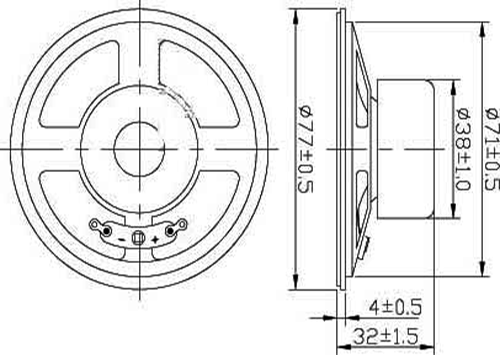

                          Model                      YD77-2-F32UT

Diameter:

Φ78mm

Cone Material:

Paper

Edge:

Foam/Cloth

Nominal Power:

10w

Maximum Power:

15w

Impedance:

4/8/16/32±15%Ω

Voice coil:


Fo:

220±20%Hz

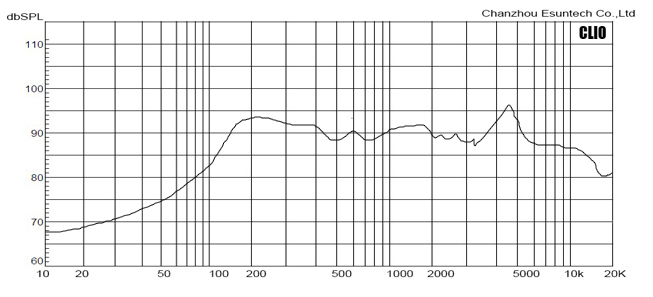

Response:

Fo-10kHz

S.P.L:

88±3dB/1W/0.5M

Magnet Size:

Φ32×18×6(Ferrite)


Φ32×18×6(Ferrite)

Net weight:

91g

3
