Loudspeaker YD87-01-4F60M 87mm*87mm 3.5inch Square Mylar Cone Waterproof Speaker Unit-ESUTECH

Quantity:
  • YD87-01-4F60M
  • EST

2

                       Model                         YD87-01-4F60M

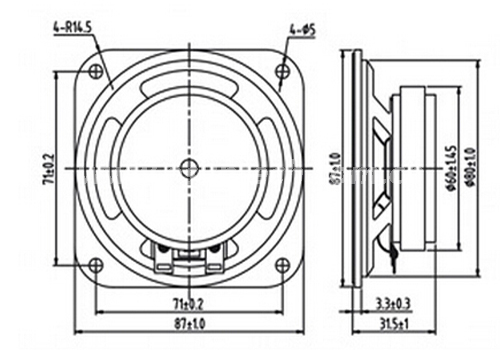

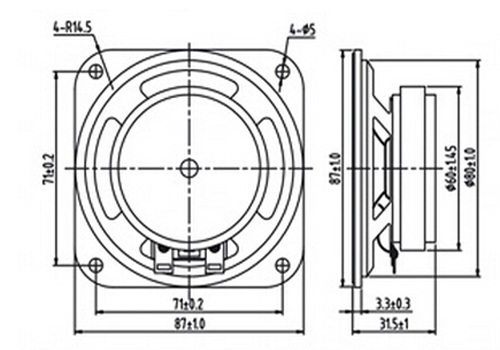

Diameter:

      87×87mm

Cone Material:

      Mylar

Edge:

      Mylar

Nominal Power:

      5w

Maximum Power:

      8w

Impedance:

      4±15%Ω

Voice coil:

      Φ19.45mm

Fo:

      500±20%Hz

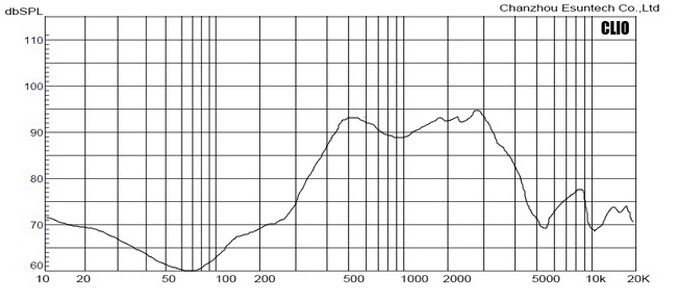

Response:

      Fo-8kHz

S.P.L:

      90±3dB/1W/0.5M

Magnet Size:

      Φ60×32×10(Ferrite)

Net weight:

      255g
