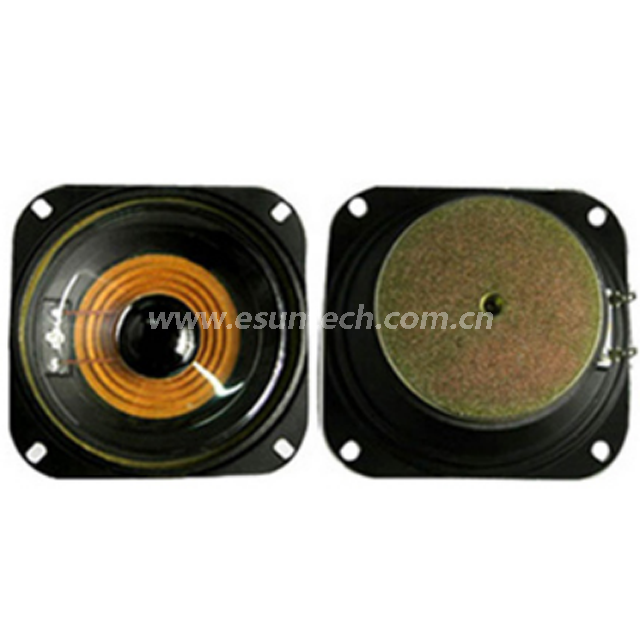

Loudspeaker YDZ100-10-8F70M 4 Inch 102mm Waterproof Speaker Drivers Mylar Cone Speaker Unit -ESUTECH

  • YDZ100-10-8F70M
  • EST
Quantity:

2

                     Model             YDZ100-10-8F70M

Diameter:

102×102mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

900±20%Hz

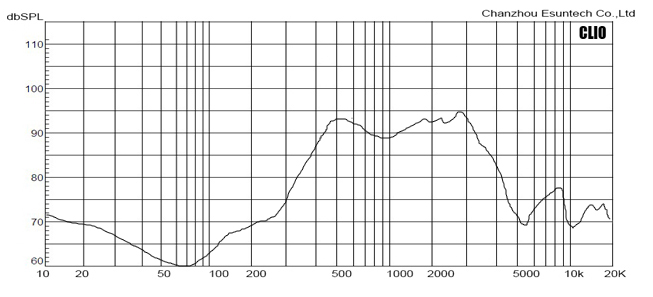

Response:

Fo-4kHz

S.P.L:

100±3dB/W/M

Magnet Size:

Φ70×24×10(Ferrite)

Net weight:

452g
