Loudspeaker YDZ100-9G-8F70P 4 Inch YD100 Mid Range High Quality Waterproof Speaker Driver -ESUTECH

Quantity:
  • YDZ100-9G-8F70P
  • EST

2

                          Model                  YDZ100-9G-8F70P

Diameter:

102×102mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

900±20%Hz

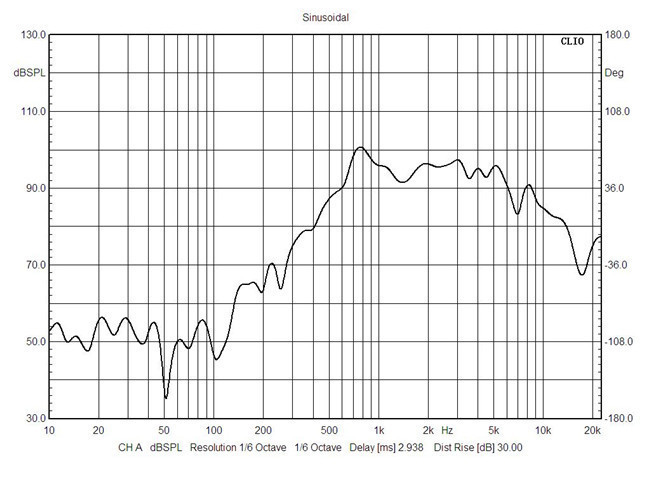

Response:

Fo-4kHz

S.P.L:

95±3dB/W/M

Magnet Size:

Φ70×24×10(Ferrite)

Net weight:

452g
