Piezo buzzer EPT1790-HO-03-2.0-25-10.0-R piezoelectric transducer -ESUNTECH

Quantity:
  • EPT1790-HO-03-2.0-25-10.0-R

17mmx9mm pin buzzer 3V 6V 9V 2000hz 1790 1709 passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

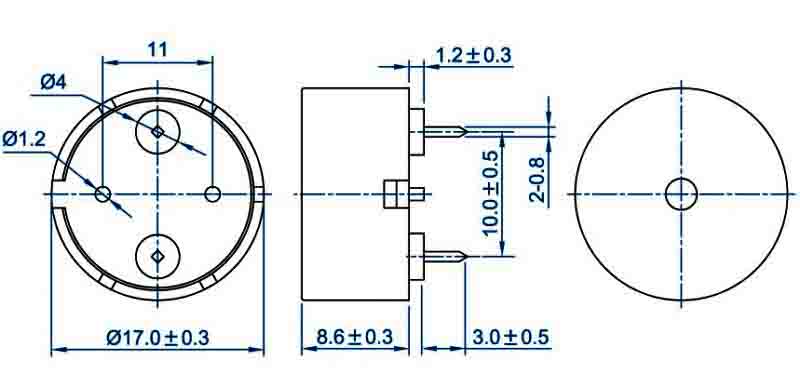

2

Model No. EPT1790-HO-03-2.0-25-10.0-R
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 1~25
*Current Consumption (mA) ≤3
Capacitance at120Hz (PF) 25000±30%
*Sound Output at 10cm (dB) ≥70
Resonant Frequency (Hz) 2000±500
Operating Temperature (℃) -20~+60
Storage Temperature (℃) -30~+70
Weight (g) 1
Case material and colour PPO / Black
RoHS Yes

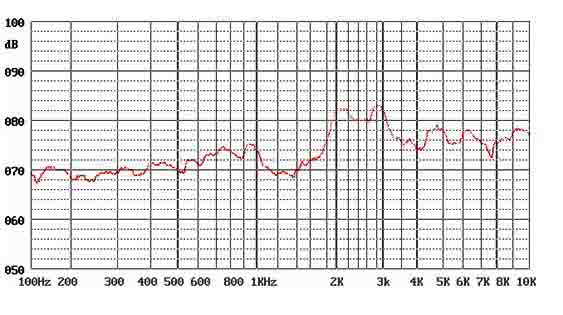

3
