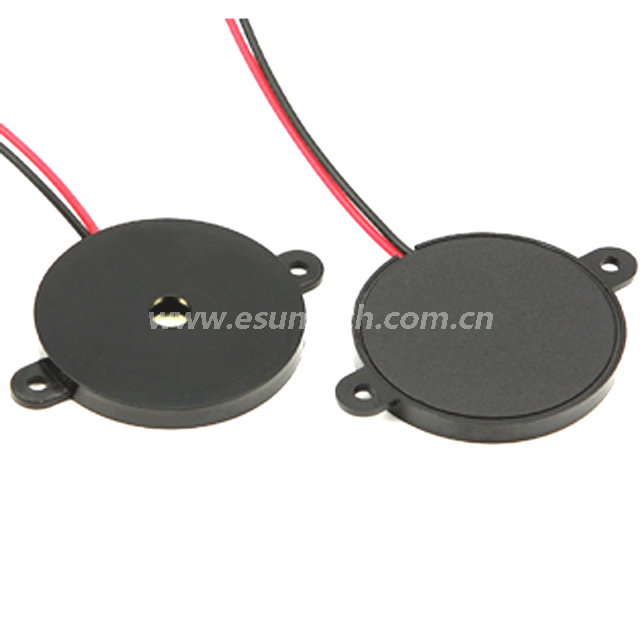

Piezo buzzer EPT3045W1103-TA-12-4.0-25-R wired transducer -ESUNTECH

Quantity:
  • EPT3045W1103-TA-12-4.0-25-R

30mmx4.5mm wired buzzer 3V 6V 12V 4000hz 3045   alarm annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No. EPT3045W1103-TA-12-4.0-25-R
Rated Voltage (Vp-p) 12
Operating Voltage (Vp-p) 1~30
Resonant Frequency (Hz) 4000±500
Capacitance 120Hz (pF) 25000±30%
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) ≤5
Operating Temperature (℃) -20~+60
Storage Temperature (℃) -35~+70
Weight (g) 4
RoHS Yes

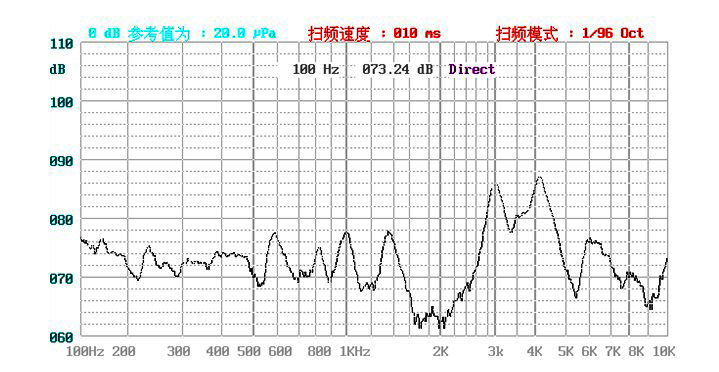

3
