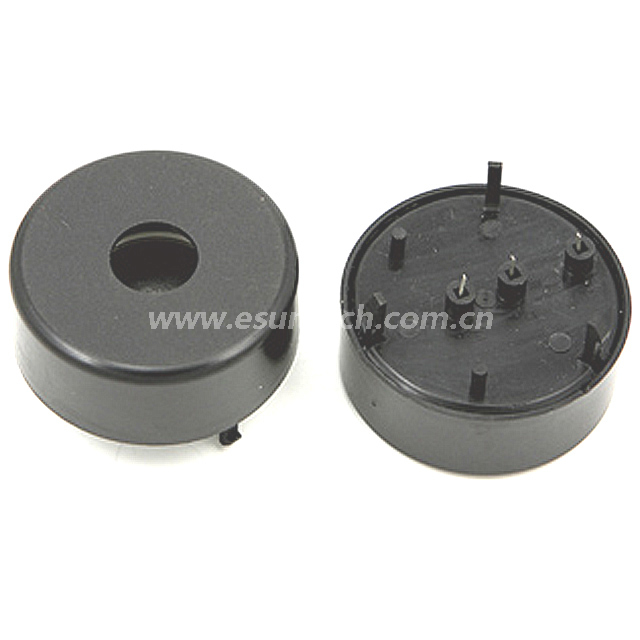

Piezo external-driver transducer EPF3917B-GO-09-3.4-R 6V 12V 3 pin annunciator -ESUNTECH

Quantity:
  • EPF3917B-GO-09-3.4-R

39mmx17mm Piezo external-driver 3 pin  transducer  6V 12V 24V 3400hz 3917 alarm annunciator feedback piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2


Model EPF3917B-GO-09-3.4-R
Rated Voltage (VDC) 9
Operating Voltage (VDC) 3~28
*Rated Current (mA) ≤9
*Sound Output at 1 m (dB) ≥95
*Resonant Frequency (Hz)  3400±300
Operating Temperature (℃)  -20 ~ +70
Storage Temperature (℃)  -30 ~ +80
Weight (g)  14.5
Housing Material  Black PPO and Nylon
RoHS Yes

3

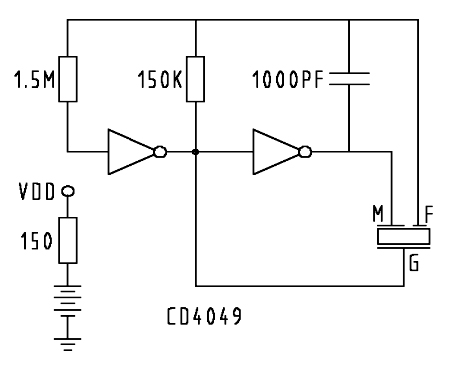

self-oscillation test circuit:

未标题-1 拷贝
