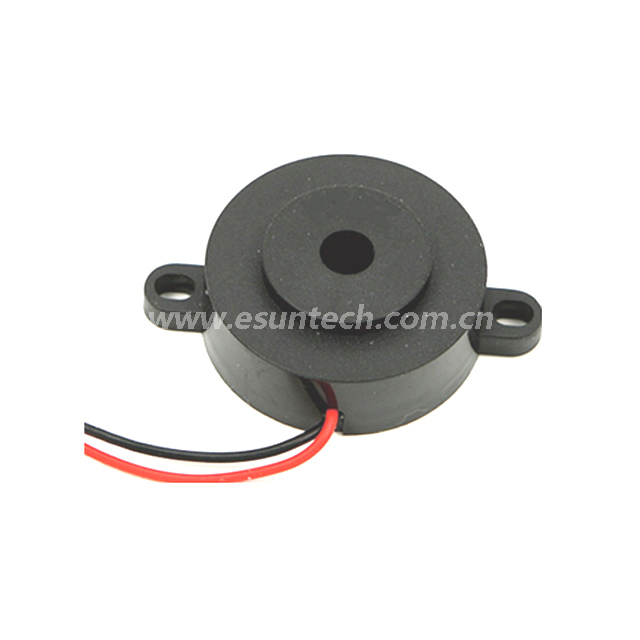

Piezo wired buzzer EPB3215SW1005-TA-12-3.9-R continuous tone buzzer -ESUNTECH

Quantity:
  • EPB3215SW1005-TA-12-3.9-R

32mmx15mm continuous pulse tone sound buzzer  6V 9V 12V 24V 3900hz 3215 alarm annunciator active piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

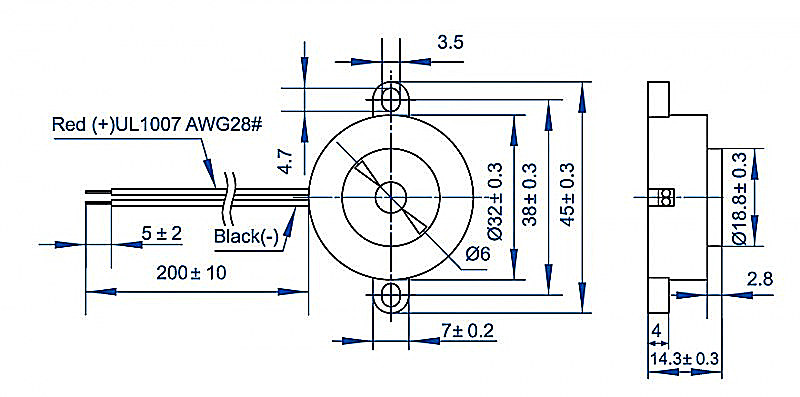

2


Model EPB3215SW1005-TA-12-3.9-R
Rated Voltage (VDC) 12
Operating Voltage (VDC) 3~20
*Rated Current (mA) ≤12
*Sound Output at 30 cm (dB) ≥95
*Resonant Frequency (Hz) 3900±500
Tone Continuous
Operating Temperature (℃) -20 ~ +65
Storage Temperature (℃) -30 ~ +75
Weight (g) 8
Housing Material ABS
RoHS Yes

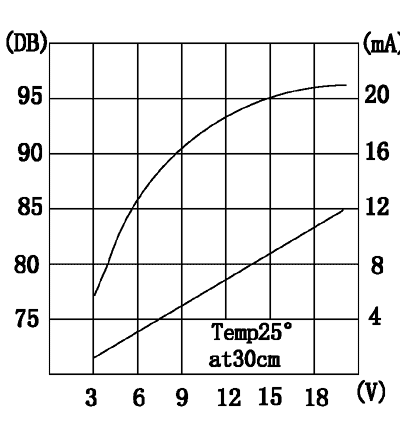

3
