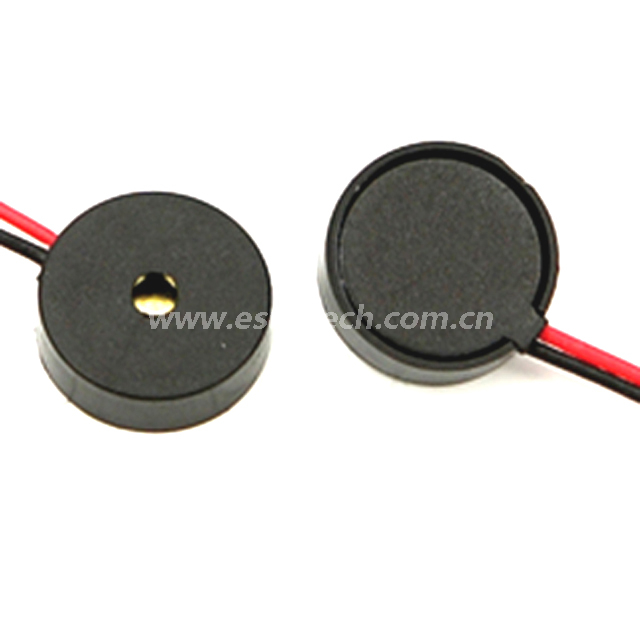

Piezo wired transducer EPT1440W353-TA-03-4.8-15-R 3V piezoelectric buzzer -ESUNTECH

Quantity:
  • EPT1440W353-TA-03-4.8-15-R

14mmx4mm wired buzzer 3V  4800hz 1440 1404 passive piezo transducer & buzzer  high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

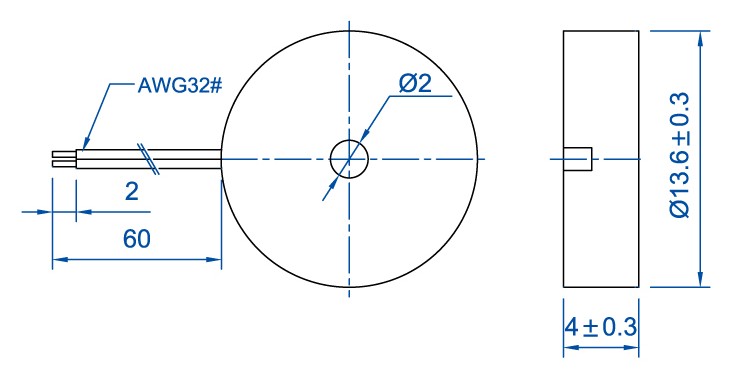

2

Model No. EPT1440W353-TA-03-4.8-15-R
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 1~20
Resonant Frequency (Hz) 4800±500
Capacitance 120Hz (PF) 15000±30%
*Sound Output at 10cm (dB) ≥75
*Current Consumption (mA) ≤3
Operating Temperature (℃) -20~+60
Storage Temperature (℃) -30~+70
Weight (g) 1
Housing Material PPO
RoHS Yes

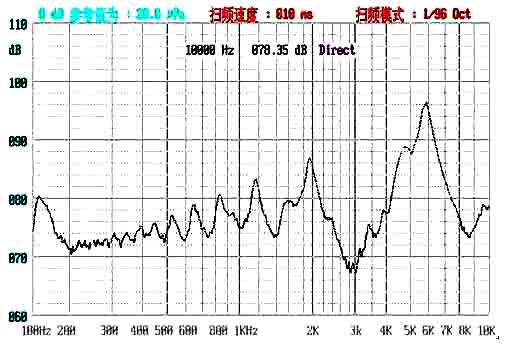

3
