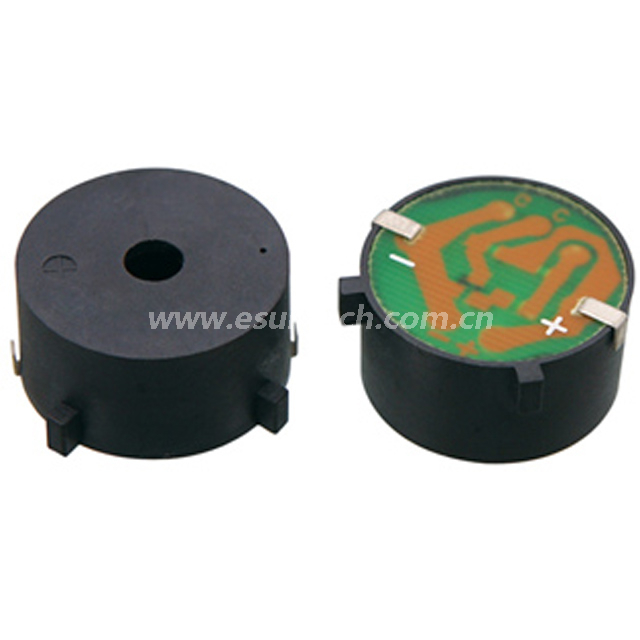

SMD Piezo buzzer EPB2412S 12VDC -ESUNTECH

Quantity:
  • EPB2412S-HS-12-3.4-R

24mm*12mm 12V 2412   SMD passive piezo transducer & buzzer round buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

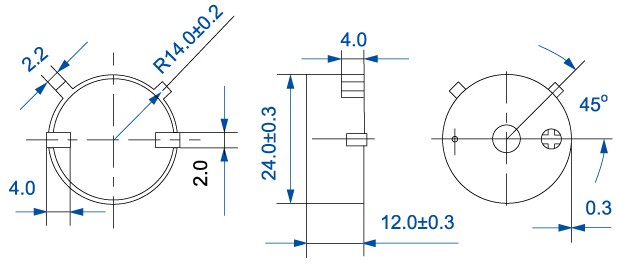

2

Model No. EPB2412S-HS-12-3.4-R
Rated Voltage (VDC) 12
Max Input Voltage (VDC) 3~16
Rated Current (mA) ≤12
Resonance Frequency (KHz) 3.4±0.5
Capacitance at 120Hz (pF) 12000±30%
Sound Output at 10cm (dB) ≥90
Operating Temperature (℃) -20~+75
Storage Temperature (℃) -30~+85
Weight (g) 2
Housing Material LCP
RoHS Yes
