SMD Piezo buzzer EPT1230S-HL-03-4.0-16-R low voltage 3V transducer- ESUNTECH

Quantity:
  • EPT1230S-HL-03-4.0-16-R

12mm*12mm*3mm 3V 1230 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

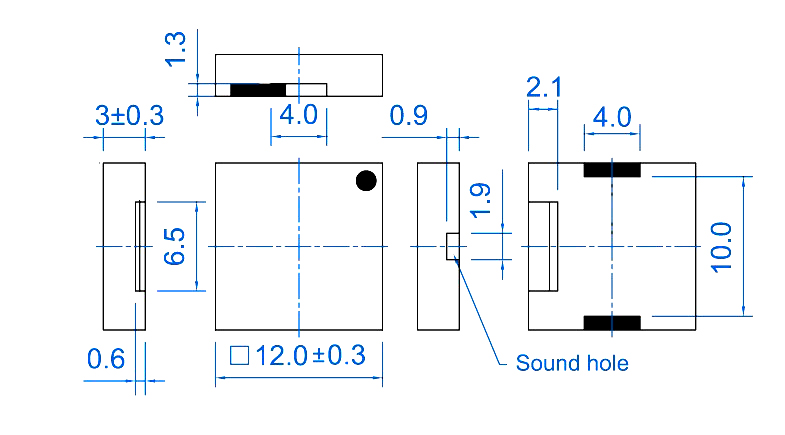

2

Model No. EPT1230S-HL-03-4.0-16-R
Rated Voltage (Vp-p) 3
Max Input Voltage (Vp-p) 1~25
Rated Current (mA) ≤5
Resonance Frequency (KHz) 4.0±0.5
Capacitance at 120Hz (pF) 16000±30%
Sound Output at 10cm (dB) ≥75
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 0.3
Housing Material LCP
RoHS Yes
