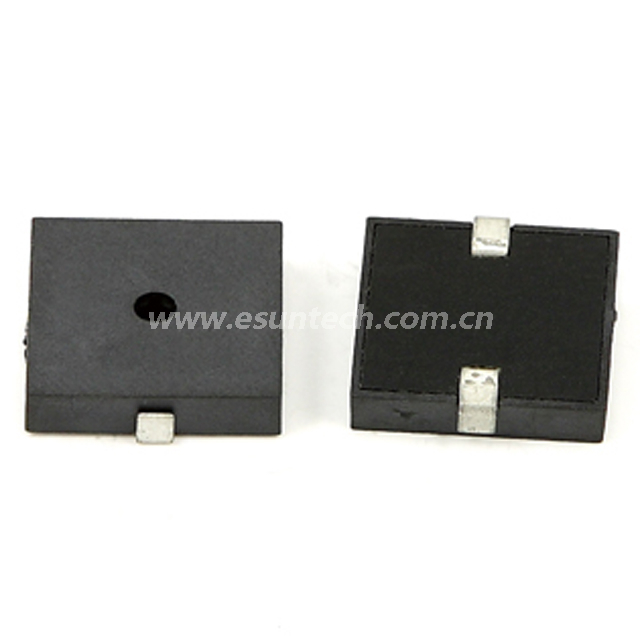

SMD Piezo buzzer EPT1750S-HS-05-4.0-15-R supplier from ESUNTECH

  • EPT1750S-HS-05-4.0-15-R
Quantity:

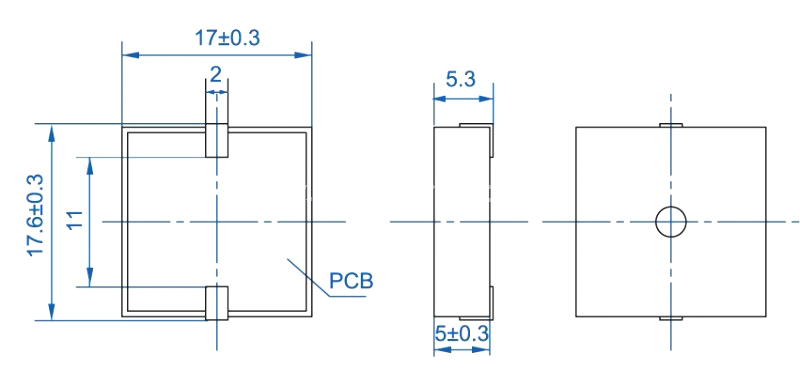

17mm*17mm*5mm 5V 1750 1705 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model Number EPT1750S-HS-05-4.0-15-R
Rated   Voltage (Vp-p) 5
Operating   Voltage (Vp-p) 1~20
*Current   Consumption (mA) ≤2.5
Capacitance   at100Hz (PF) 15000±30%
*Sound   Output at 10cm (dB) ≥80
Resonant   Frequency (Hz) 4000±500
Operating   Temperature (℃) -20~+70
Storage   Temperature (℃) -30~+80
Weight   (g) 2
Housing   Material PPS
RoHS Yes

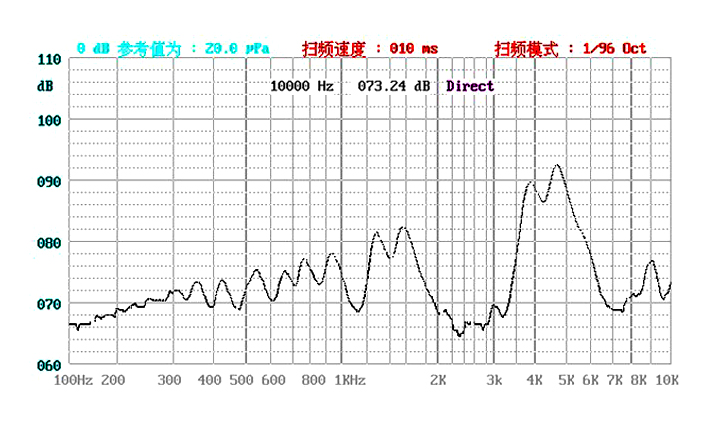

未标题-1 拷贝
