SMD Piezo buzzer EPT1760CS-HS-12-4.0-15-R 4KHZ transducer-ESUNTECH

Quantity:
  • EPT1760CS-HS-12-4.0-15-R

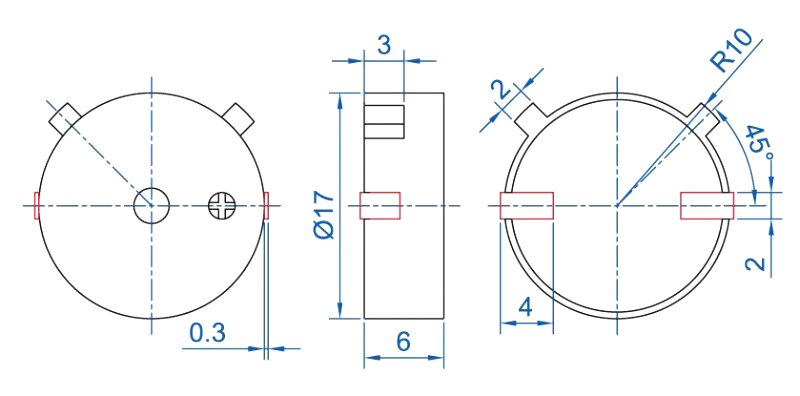

17mm*6mm 12V 1760 1706 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No. EPT1760CS-HS-12-4.0-15-R
Rated Voltage (Vp-p) 12
Max Input Voltage (Vp-p) 30
*Rated Current (mA) ≤10
Resonance Frequency (Hz) 4000±500
Capacitance at 120Hz (pF) 15000±30%
*Sound Output at 10cm (dB) ≥90
Operating Temperature (℃) -20~+75
Storage Temperature (℃) -30~+85
Weight (g) 2
Housing Material PPS
RoHS Yes

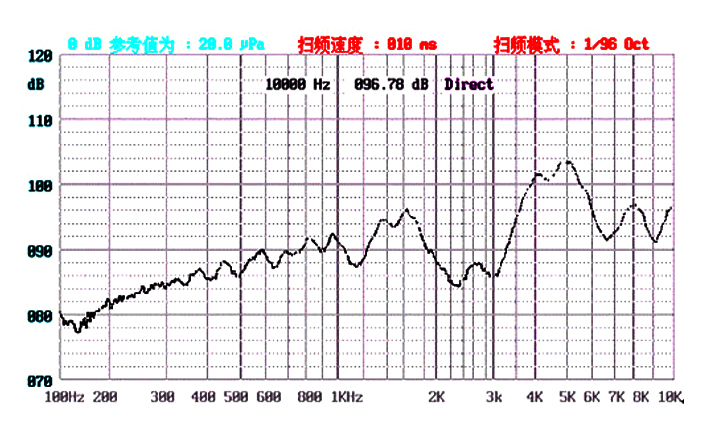

未标题-2 拷贝
