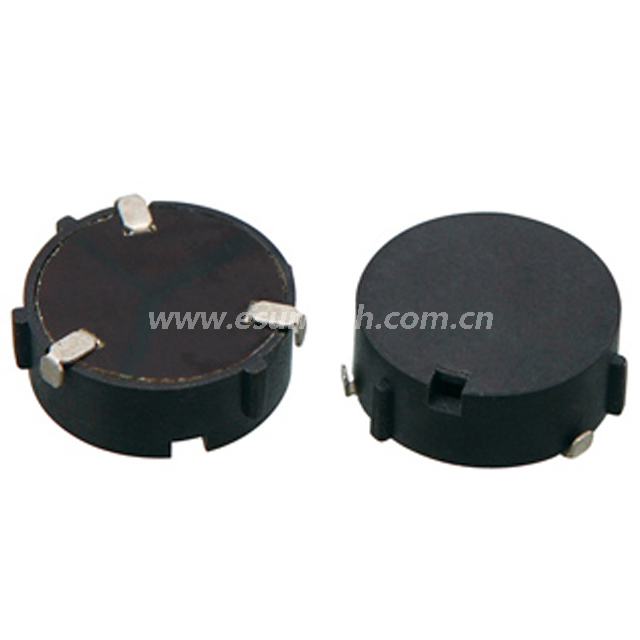

SMD Piezo buzzer EPT1870S-HS-3.6-2.0-25-R surface mount package-ESUNTECH

Quantity:
  • EPT1870S-HS-3.6-2.0-25-R

18mm*7mm 3.6V 1870 1807  SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No. EPT1870S-HS-3.6-2.0-25-R
Rated   Voltage (Vp-p) 3.6
Operating   Voltage (Vp-p) 1~25
Resonant   Frequency (Hz) 2000±500
Static   Capacitance at1KHz (PF) 25000±30%
*Sound   Output at 10cm (dB) ≥75
*Current   Consumption (mA) ≤8
Operating   Temperature (℃) -20~+70
Storage   Temperature (℃) -30~+85
Weight   (g) 2
Housing   Material PPS
RoHS Yes

未标题-1 拷贝
