SMD Piezo buzzer EPT2290S-HS-05-4.0-15-R low voltage-ESUNTECH

Quantity:
  • EPT2290S-HS-05-4.0-15-R

22mm*9mm 5V 2290 2209  SMD passive piezo transducer & buzzer round buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

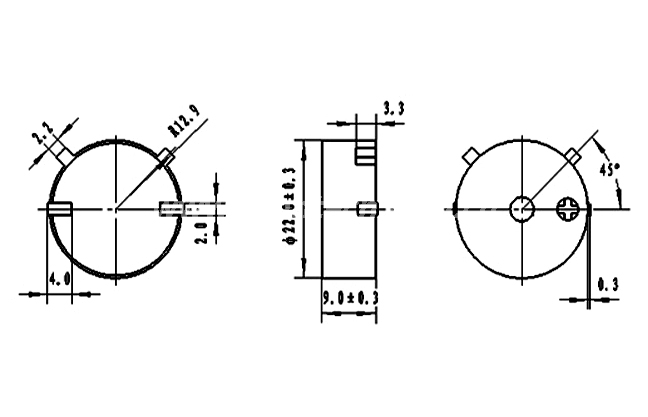

未标题-3 拷贝

Model No. EPT2290S-HS-05-4.0-15-R
Rated Voltage (Vp-p) 4
Operating Voltage (Vp-p) 1~30
*Current Consumption (mA) ≤5
Capacitance at120Hz (PF) 15000±30%
*Sound Output at 10cm (dB) ≥90
Resonant Frequency (Hz) 4800±500
Operating Temperature (℃) -20~+60
Storage Temperature (℃) -30~+70
Weight (g) 2.2
Housing Material
RoHS Yes

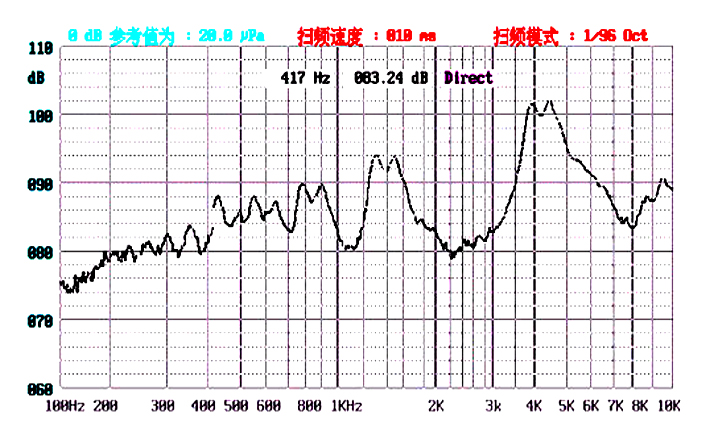

未标题-1 拷贝
