SMD Piezoelectric buzzer EPT9020S SMT transducer-ESUNTECH

Quantity:

9mm*9mm*2mm 3V 0902 9020 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

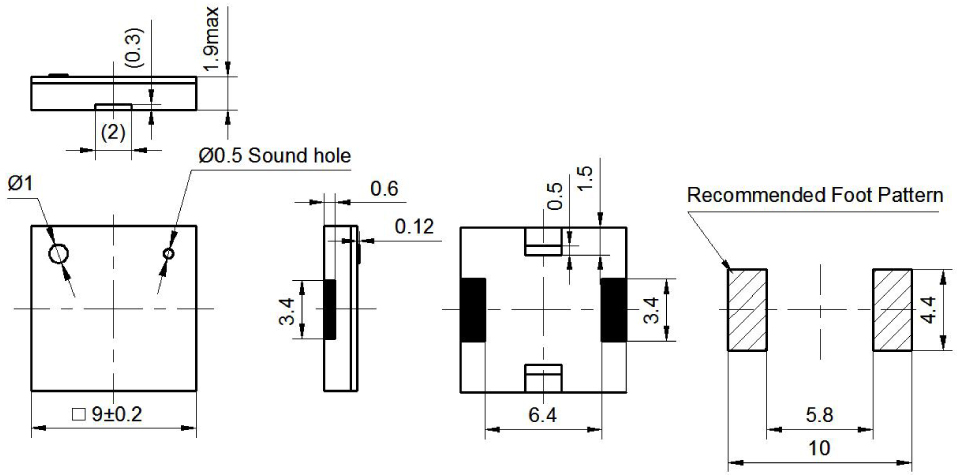

EPT9018BS-HL-03-4.0-12-R


Model No. EPT9020S-HL-3-4.0-12-R
Rated Voltage (Vp-p) 3
Max Input Voltage (Vp-p) 1~25
Rated Current (mA) ≤3
Resonance Frequency (KHz) 4.0±0.5
Capacitance at 120Hz (pF) 12000±30%
Sound Output at 10cm (dB) ≥70
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~+85
Weight (g) 0.25
Housing Material LCP
RoHS Yes

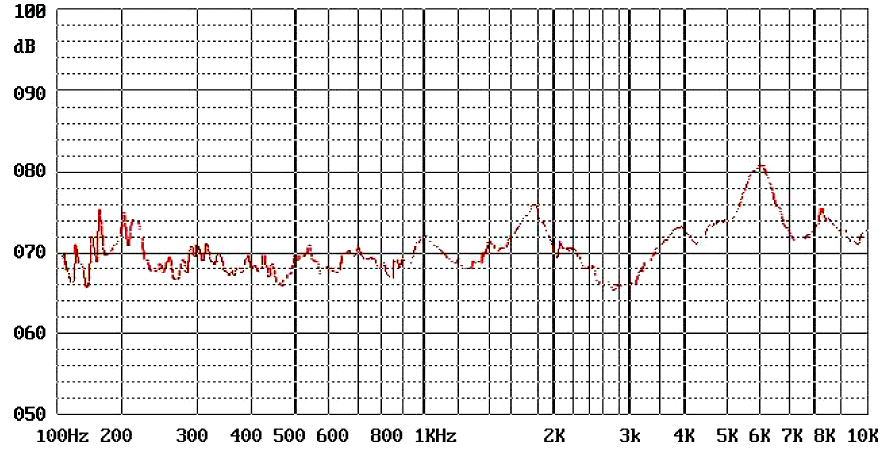

33
