SMD electromagnetic buzzer EET1310FS-12L-2.4-140-R 5v magnetic transducer -ESUNTECH

Quantity:
  • EET1310FS-12L-2.4-140-R

13mmx13mmx10mm 5V 1310 1301  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

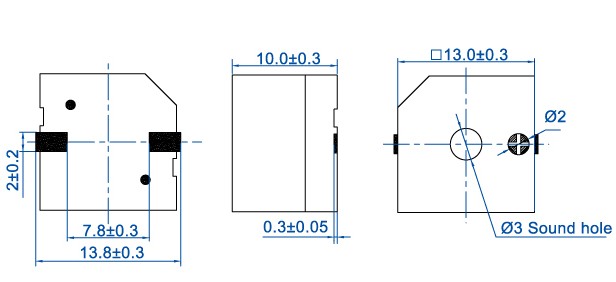

2

Model No. EET1310FS-12L-2.4-140-R
Rated Voltage (V) 12
Operating Voltage (V) 8~16
Coil Resistance/DC (Ω) 140±10
Resonance Frequency (Hz) 2400
*Sound Output at 10cm (dB) Min.90
*Current Consumption (mA) ≤40
Operating Temperature (℃) -40~+80
Storage Temperature (℃) -40~+80
Weight (g) 2
Housing Material LCP
RoHS Yes

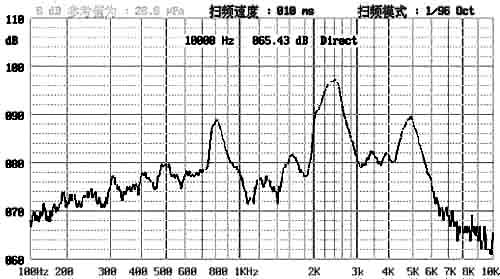

3
