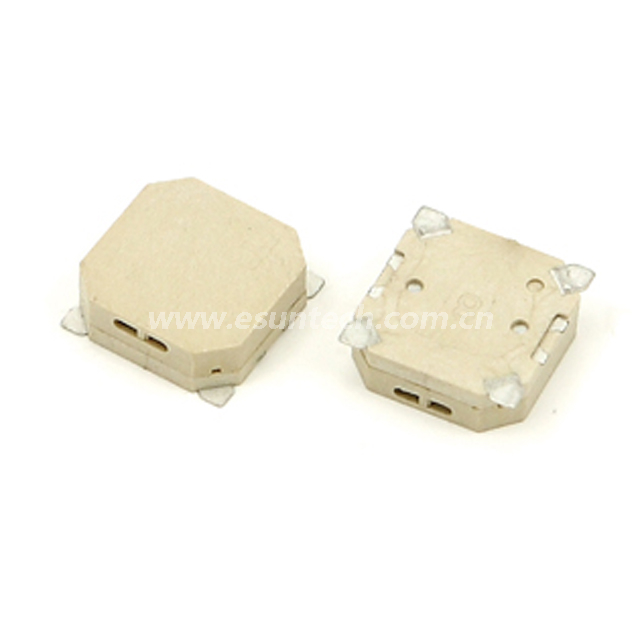

SMD electromagnetic buzzer EET8835S-3.6L-2.73-20-R High-Output Alarm Annunciator -ESUNTECH

  • EET8835S-3.6L-2.73-20-R
Quantity:

8.8mmx8.8mmx3.5mm 3.6V  2730hz 8836  SMD passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

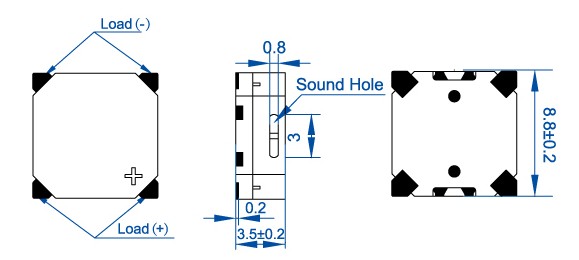

2

Model No. EET8835S-3.6L-2.73-20-R
Rated Voltage (V) 3.6
Max Input Voltage (V) 2.5~5.5
Rated Current (mA) ≤80
Coil Resistance (Ω) 20±3
Resonance Frequency (Hz) 2730
*Sound Pressure Level (dB/min) 88 at10cm at Rated Voltage
*Current Consumption (mA/max) 100 at Rated Voltage
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 0.8
Rohs Yes

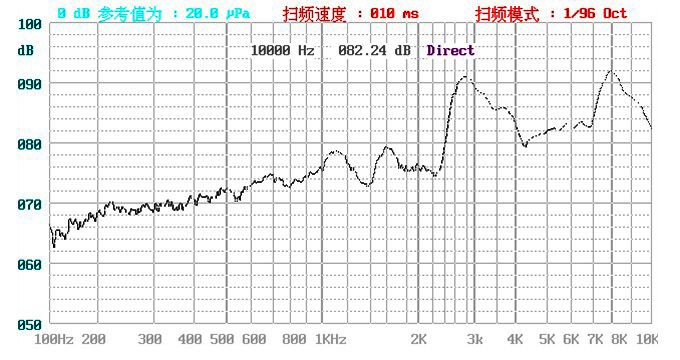

3
