SMD electromagnetism buzzer EET8540AS-3.6L-2.731-16-R High-Output Alarm Annunciator -ESUNTECH

  • EET8540AS-3.6L-2.731-16-R
Quantity:

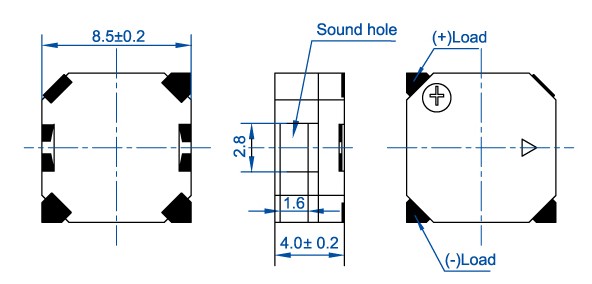

8.5mmx8.5mmx4mm 3.6V  2731hz 8540 8504  SMD passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No. EET8540AS-3.6L-2.731-16-R
Rated Voltage (V) 3.6
Max Input Voltage (V) 2~4
Coil Resistance (Ω) 16±3

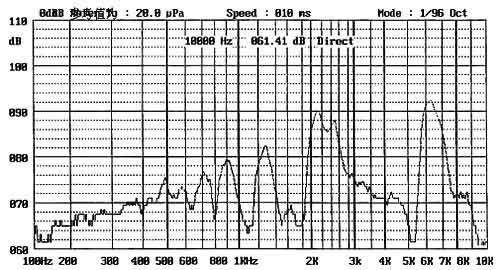

Resonance Frequency (Hz) 2731
*Sound Pressure Level (dB/min) 85at10cm at Rated Voltage
*Current Consumption (mA/max) 100 at Rated Voltage
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 0.8
Housing Material LCP
Rohs Yes
