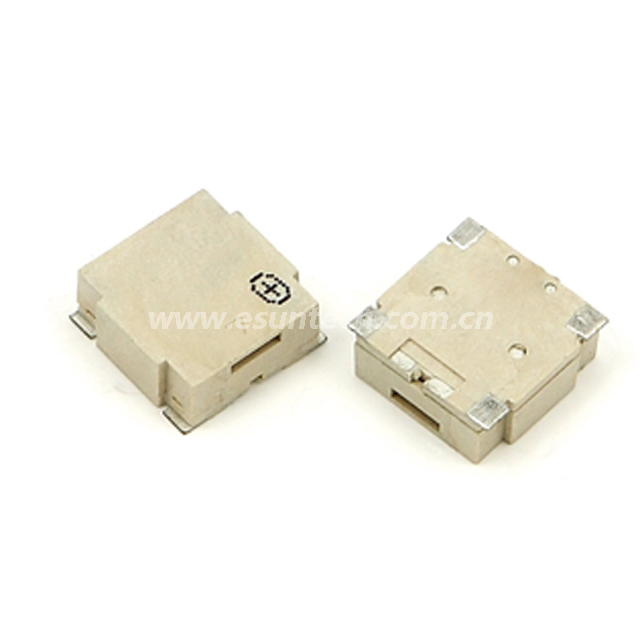

SMD magnetic transducer buzzer EET8536CS-03L-2.730-18-R High-Output Alarm Annunciator -ESUNTECH

Quantity:
  • EET8536CS-03L-2.730-18-R

8.5mmx6.5mmx3.6mm 3V  2730hz 8536  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No. EET8536CS-03L-2.730-18-R
Rated Voltage (V) 3
Max Input Voltage (V) 2~5
Coil Resistance (Ω) 18±3
Rated Current (mA) 80 at Rated Voltage
Resonance Frequency (Hz) 2730
Sound Output at 10cm (dB) 85 at10cm at Rated Voltage
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 0.5
Housing Material LCP/BLACK
Rohs Yes
