SMD speaker buzzer EDMS1340 miniature speaker -ESUNTECH

Quantity:
  • EDMS1340-R08W0.7-A

13mmx13mmx4mm SMD mini  speaker 850hz 1340  1304 annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd.

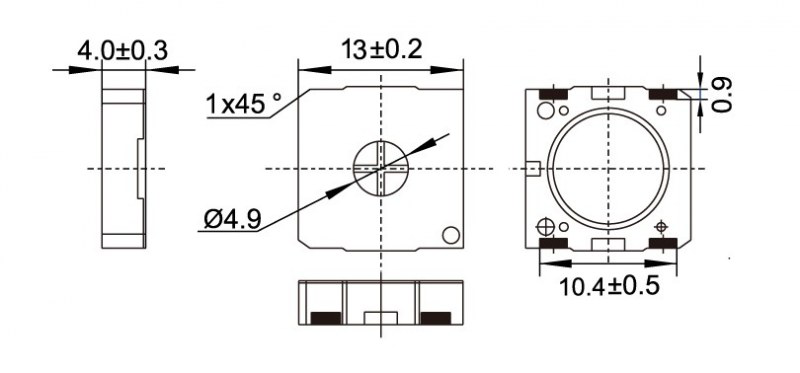

2

Model No. EDMS1340-R08W0.7-A
Rated Impedance (ohm) 8±20%
Rated (Max.) Power (W) 0.7(1.0)
Resonant Frequency (Hz) 850±20%
Frequency Range (Hz) fo6000
SPL (dB) 88±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W
Buzzer &Rattles Must be normal at sine wave 2Vrms
Frame Material LCP
Operating Temperature  () -30+85
Storage Temperature    () -40+105
Weight (g) 1.5
RoHS Yes

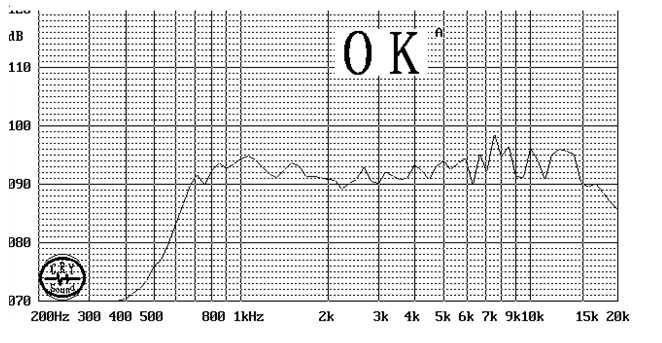

3
