SMD speaker buzzer EDMS1540 mini buzzer -ESUNTECH1540

Quantity:
  • EDMS1540S-01-R8W0.8-R

15mmx15mmx4mm SMD mini  speaker 800hz 1540 1504  annunciator transducer & buzzer  high quality   for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd.



Model No. EDMS1540S-01-R8W0.8-R
Rated Impedance (ohm) 8±20%
Rated (Max.) Power (W) 0.5(0.8)
Resonant Frequency (Hz) 800±20%
Frequency Range (Hz) fo6000

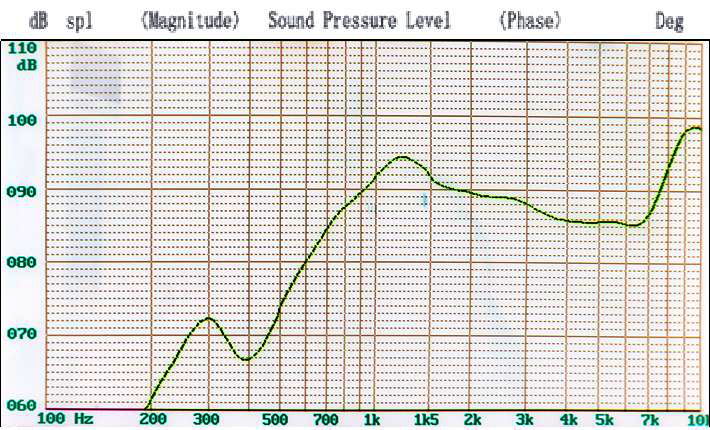

SPL (dB) 88±3 at 1k,1.6k,2k,3.2kHz,0.1m0.5W
Buzzer &Rattles Must be normal at sine wave 2Vrms
Frame Material LCP
Operating Temperature  () -30+85
Storage Temperature    () -40+105
Weight (g) 1.5
RoHS Yes

3
