electricpiezo buzzer EPT3055DW-TA-12-1.3-20-R wired transducer -ESUNTECH

Quantity:
  • EPT3055DW-TA-12-1.3-20-R

30mmx5.5mm wired buzzer 3V 6V 12V 1300hz 3055   alarm annunciator  passive piezo transducer & buzzer with wire high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

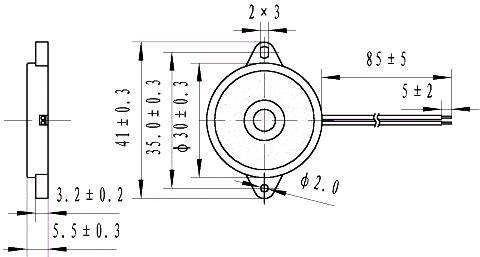

2

Model No. EPT3055DW-TA-12-1.3-20-R
Rated Voltage (Vp-p) 12
Operating Voltage (Vp-p) 3~24
Resonance Frequency (Hz) 1300
Capacitance at 120Hz (pF) 20000±30%
*Sound Output at 10cm (dB) ≥80
*Current Consumption (mA) ≤12
Operating Temperature (℃) -20~+60
Storage Temperature (℃) -30~+70
Weight (g) 4
RoHS Yes

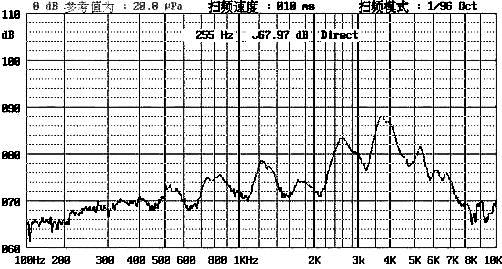

3
