magnetic buzzer EET1290 passive magnetic anunciator -ESUNTECH

Quantity:
  • EET1290-120-2.4-140-6.5-LAB-R

12mmx9mm 12V  140 OHM 2400hz 1290 1209  passive electromagnetic transducer & buzzer square  buzzer Annunciator high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

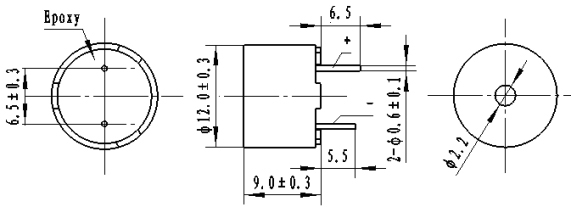

2

Model EET1290-120-2.4-140-6.5-LAB-R
Rated Voltage (Vo-p) 12
Operating Voltage (Vo-p) 7~16
Resonant Frequency (Hz) 2400
Coil Resistance (Ω) 140±16
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) ≤40
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 2
Rohs  Yes

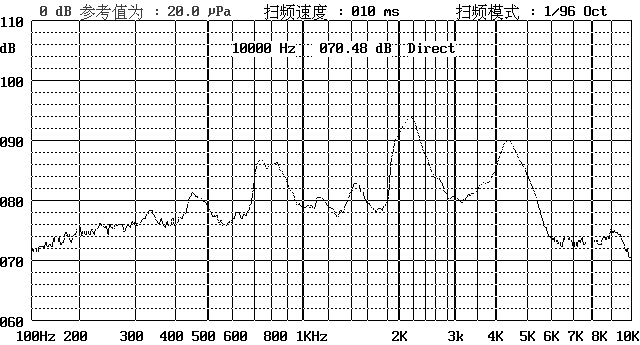

3
