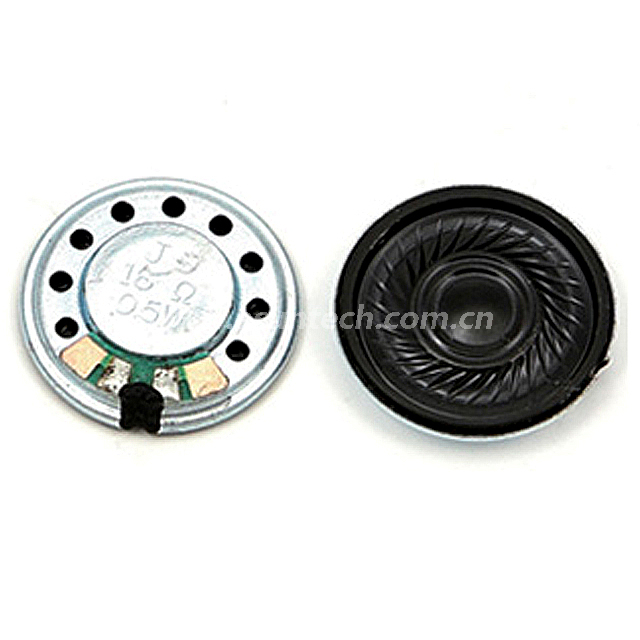

mylar cone speaker 36mm doorbell speaker EST36N-A -ESUNTECH

Availability:
Quantity:



Product Overview

32mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 550hz 0.5W 3650 3605  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


14664767407107267


Technical Specifications

Model No. EST36N-A
Cone Material:  Mylay
Edge:  paper
Nominal Power:  0.25w
Maximum Power:  0.5w
Impedance:  4/8/18/32/64/120 ohm±15%
Fo:  550hz
Response:  Fo-6kHz
S.P.L:   95±3dB/W/M
Magnet :  NdFeB
Rohs Yes

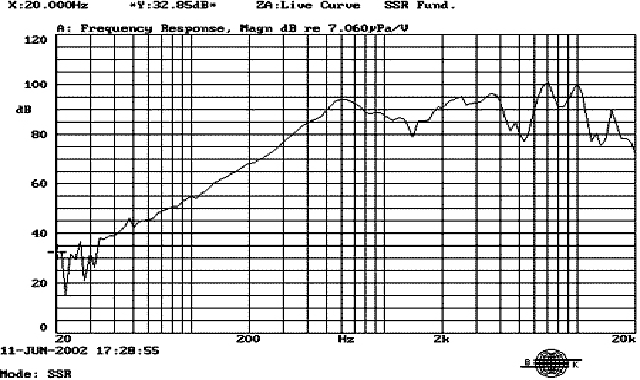

Frequency  Response Curve


3
