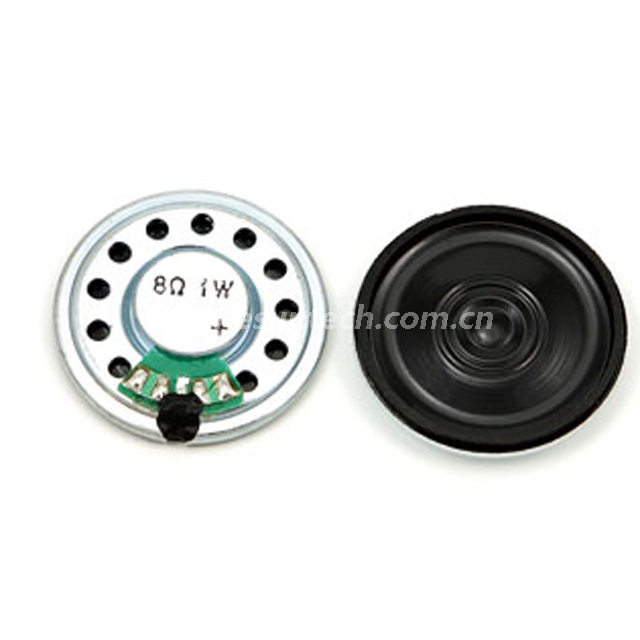

mylar cone speaker EST36N-A doorbell big sound speaker -ESUNTECH

  • EST36N-A
Quantity:

36mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 350hz 0.5W 3650 3605  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


4

Model No. EST36N-A
Cone Material:  Mylay
Edge:  paper
Nominal Power:  0.25w
Maximum Power:  0.5w
Impedance:  4/8/18/32/64/120 ohm±15%
Fo:  600hz
Response:  Fo-6kHz
S.P.L:   91±3dB/W/M
Magnet:  NdFeB
Rohs Yes

3
