mylar speaker EST15N miniature earphone speaker -ESUNTECH

Quantity:
  • EST15N-02

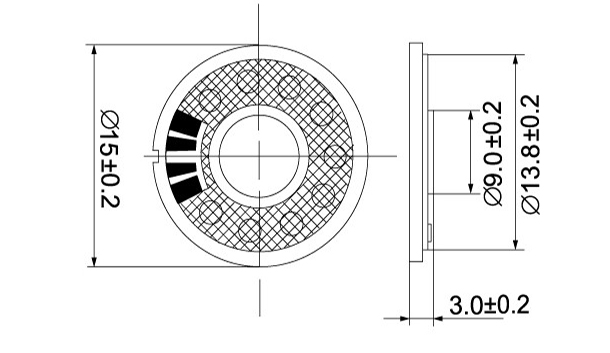

15mmx3mm   mini  speakerwith grid 600hz 1530 1503 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No. EST15N-02
Cone Material:  Mylar
Edge:
Nominal Power:  0.5w
Maximum Power:  0.8w
Impedance:  8 ohm±15%Ω
Fo:  600hz

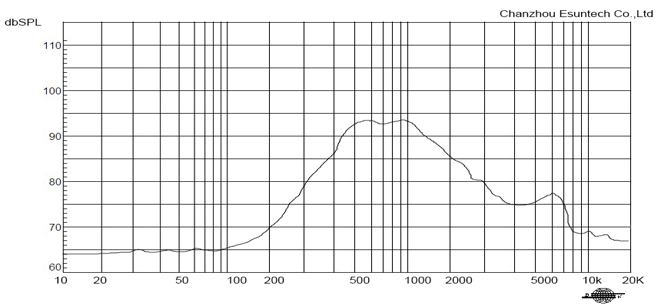

Response:  Fo-20kHz
S.P.L:   90±3dB/W/M
Magnet Size:  NdFeB
Rohs Yes
