piezoelectric ceramic buzzer plate A1 FT - Esuntech

  • FT-A1

Quantity:

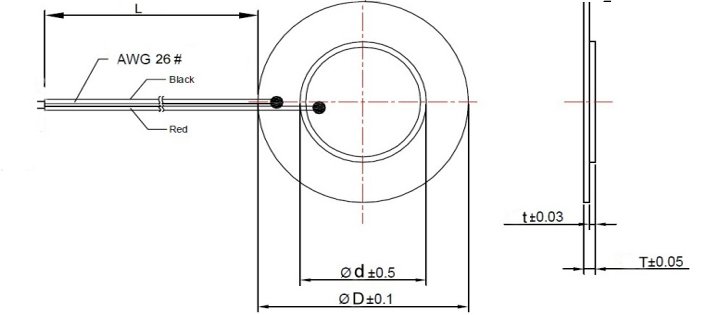

2带线片子图形

model No. Fr(KHz) Zr( Ω) C(nF) Dimension(mm) Metal
D d T t
FT-9.9H-7.5A1 7.5±1.0 500 10nF±30% 9.9 7 0.12 0.05 A11oy
FT-10.5H-10.0A1 10.0±0.8 500 5.5nF±30% 10.5 8 0.17 0.05 A11oy
FF-11H-6.5A1 6.5±0.5 500 10nF±30% 11 8 0.12 0.05 A11oy
FT-11H-9.0A1 9.0±0.5 500 11nF±30% 11 8 0.17 0.1 A11oy
FT-11G-9.6A1 9.6±0.5 500 12nF±30% 11 8 0.17 0.1 S-steel
FT-11T-9.6A1 9.6±0.5 500 12nF±30% 11 8 0.17 0.1 Brass
FT-11T-10.0A1 10.0±0.9 300 9.5nF±30% 11 8 0.19 0.11 Brass
FT-12T-5.3A1 5.3±0.5 500 15nF±30% 12 9 0.12 0.05 Brass
FT-12H-5.5A1 5.5±0.5 500 13nF±30% 12 9 0.12 0.05 A11oy
FT-12H-6.0A1 6.0±0.5 500 13nF±30% 12 9 0.12 0.05 A11oy
FT-12T-6.0A1 6.0±0.5 500 17nF±30% 12 9 0.12 0.06 Brass
FT-12T-6.5A1 6.5±0.5 300 15nF±30% 12 9 0.15 0.09 Brass
FT-12T-8.0A1 8.0±0.5 300 15nF±30% 12 9 0.19 0.1 Brass
FT-12T-8.5A1 8.5±0.7 300 10nF_30% 12 9 0.2 0.08 Brass
FT-12T-9.0A1 9.0±0.5 300 12nF±30% 12 10 0.2 0.1 Brass
FT-12T-9.05A1 9.05±0.5 300 15nF±30% 12 9 0.22 0.1 Brass
FT-12.5T-8.5A1 8.5±0.5 300 11nF±30% 12.5 10 0.22 0.1 Brass
FT-13H-4.5A1 4.5±0.5 500 15nF±30% 13 9 0.12 0.05 A11oy
FT-13T-6.5A1 6.5±0.5 500 13nF±30% 13 9 0.18 0.1 Brass
FT-13.5T-7.0A1 7.0±0.5 300 12nF±30% 13.5 9 0.22 0.1 Brass
FT-14H-4.3A1 4.3±0.5 300 70nF±30% 14 12 0.12 0.05 A11oy
FT-15T-3.5A1 3.5±0.5 300 35nF±30% 15 12 0.12 0.05 Brass
FT-15H-4.2A1 4.2±0.5 500 34nF±30% 15 12 0.13 0.05 A11oy
FT-15H-4.6A1 4.6±0.5 500 20nF±30% 15 12 0.2 0.1 A11oy
FT-15T-4.5A1 4.5±0.5 300 12nF±30% 15 9 0.2 0.1 Brass
FT-15T-5.8A1 5.8±0.5 800 10nF±30% 15 9 0.21 0.09 Brass
FT-15T-6.0A1 6.0±0.5 300 15nF±30% 15 12 0.22 0.1 Brass
FF-15T-6.0A1 6.0±0.5 300 10nF±30% 15 11.3 0.22 0.1 Brass
FT-15T-6.0A1 6.0±0.5 300 11nF±30% 15 10 0.22 0.1 Brass
FT-15T-9.05A1 9.05±0.5 300 9nF±30% 15 10 0.32 0.12 Brass
FT-15T-10.0A1 10.0±0.5 300 9nF±30% 15 11.3 0.37 0.2 Brass
FT-17.2H-3.5A1 3.5±0.5 300 32nF±30% 17.2 13.4 0.18 0.1 A11oy
FT-18T-3.6A1 3.6±0.5 300 15nF±30% 18 12 0.2 0.08 Brass
FT-20H-2.0A1 2.0±0.5 300 70nF±30% 20 15 0.13 0.05 A11oy
FT-20T-2.5A1 2.5±0.5 300 70nF±30% 20 15 0.15 0.08 Brass
FT-20H-2.6A1 2.6±0.5 300 24nF±30% 20 15 0.15 0.05 A11oy
FF-20H-3.2A1 3.2±0.5 300 24nF±30% 20 15 0.2 0.1 A11oy
FT-20T-3.4A1 3.4±0.5 300 20nF±30% 20 15 0.22 0.1 Brass
FT-19.9T-3.6A1 3.6±0.5 300 20nF+30% 20 14 0.22 0.1 Brass
FT-20T-3.6A1 3.6±0.5 300 21nF±30% 20 15 0.22 0.1 Brass
FT-20T-3.8A1 3.8±0.5 300 19nF±30% 20 15 0.26 0.13 Brass
FT-20T-4.0A1 4.0±0.5 300 20nF±30% 20 15 0.22 0.14 Brass
FT-20T-4.0A1 4.0±0.5 300 26nF±30% 20 15 0.26 0.14 Brass
FT-20T-4.8A1 4.8±0.5 300 16nF±30% 20 15 0.3 0.15 Brass
FT-20T-5.5A1 5.5±0.5 300 15nF±30% 20 15 0.37 0.2 Brass
FT-20T-6.0A1 6.0±0.5 300 13nF±30% 20 15 0.42 0.2 Brass
FT-20T-6.5A1 6.5±0.5 300 15nF±30% 20 15 0.42 0.25 Brass
FT-20T-7.2A1 7.2±0.5 300 12nF±30% 20 15 0.47 0.25 Brass
FT-20G-7.5A1 7.5±0.5 300 12nF±30% 20 15 0.45 0.23 S-steel
FT-21T-4.5A1 4.5±0.5 300 18nF+30% 21 15 0.3 0.15 Brass
FT-22T-4.8A1 4.8±0.5 300 12nF±30% 22 16.8 0.37 0.15 Brass
FT-27T-2.0A1 2.0±0.5 300 50nF±30% 27 20 0.2 0.1 Brass
FT-27T-2.3A1 2.3±0.5 300 45nF±30% 27 20 0.22 0.1 Brass
FT-27T-2.5A1 2.5±0.5 300 45nF±30% 27 20 0.26 0.14 Brass
FT-27T-2.8A1 2.8±0.5 300 20nF±30% 27 20 0.32 0.1 Brass
FT-27T-3.5A1 3.5±0.5 300 30nF±30% 27 20 0.37 0.2 Brass
FT-27T-3.6A1 3.6±0.5 300 20nF±30% 27 20 0.42 0.2 Brass
FT-27G-3.6A1 3.6±0.5 300 20nF±30% 27 20 0.42 0.2 S-steel
FT-27T-4.0A1 4.0±0.5 300 23nF±30% 27 20 0.52 0.3 Brass
FT-27T-4.0A1 4.0±0.5 300 20nF±30% 27 20 0.47 0.25 Brass
FT-27T-4.6A1 4.6±0.5 300 20nF±30% 27 20 0.52 0.3 Brass
FT-27T-6.0A1 6.0±0.5 800 15nF±30% 27 25 0.65 0.2 Brass
FT-30T-0.9A1 0.9±0.5 300 49nF±30% 30 20 0.16 0.05 Brass
FT-31T-1.4A1 1.4±0.5 300 45nF±30% 31 20 0.22 0.1 Brass
FT-31T-1.4A1 1.4±0.5 300 70nFT30% 31 20 0.22 0.1 Brass
FT-31H-1.4A1 1.4±0.5 300 45nF±30% 31 20 0.22 0.1 A11oy
FT-31G-1.6A1 1.6±0.5 300 45nF±30% 31 20 0.22 0.1 S-steel
FT-32T-2.9A1 2.9±0.5 300 30nF±30% 32 25 0.42 0.2 Brass
FT-35T-1.8A1 1.8±0.5 300 70nF±30% 35 25 0.32 0.2 Brass
FT-35T-2.3A1 2.3±0.5 300 28nF±30% 35 25 0.42 0.2 Brass
FT-35T-2.6A1 2.6±0.5 300 28nF±30% 35 25 0.52 0.3 Brass
FT-41H-0.7A1 0.7±0.5 800 80nF±30% 41 25 0.22 0.1 A11oy
FT-41T-1.0A1 1.0±0.5 800 80nF±30% 41 25 0.22 0.1 Brass
FT-41T-1.2A1 1.2±0.5 800 75nF±30% 41 25 0.27 0.15 Brass
FT-43T-0.8A1 0.8±0.5 800 75nF±30% 43 25 0.22 0.1 Brass
FT-45T-0.7A1 0.7±0.5 300 80nF±30% 45 25 0.22 0.1 Brass
FT-50T-1.8Al 1.8±0.5 300 75nF±30% 50 25 0.22 0.1 Brass
FT-50T-2.1A1 2.1±0.5 300 75nF±30% 50 25 0.27 0.15 Brass
FT-50T-2.7A1 2.7±0.5 300 35nF±30% 50 25 0.42 0.2 Brass
FT-50T-3.0A1 3.0±0.5 300 28nF±30% 50 25 0.42 0.2 Brass
FT-55G-3.2A1 3.2±0.5 300 30nF±30% 55 25 0.42 0.2 S-steel
FT-70T-3.0A1 3.0±0.5 300 60nF±30% 70 50 0.63 0.2 Brass



Company introduction and workshop photos


 Changzhou Esuntech Co.,Ltd


Changzhou Esuntech Co.,Ltd. is a commitment to high-quality locates in Jiangsu near Shanghai which is convenient for goods transportation and customer visiting. And we have Electromax Co as the agent  in Seoul Korea. Main Poducts: Buzzer: piezoelectric (piezo) vibration element, piezoelectric buzzer, magnetic buzzer, SMD buzzer Speaker: piezo tweeter, mylar speaker, loudspeaker, tweeter speaker, TV speaker, car speaker, multimedia speaker, woofer, sub-woofer, waterproof speaker etc Ultrasonic sensor: for car parking system or distance tester.







Company Advantages:



We have excellent engineer (including Korea engineer)and we are focus on product innovation , Management innovation.The quality of product was recognized by customer from all over the world.Our products are sold more than twenty countries and regions around the world.our products are widely recognized  by them.And we have long-team relationship with the client.





Marketing Countries:



USA, Korea, Brazil, Canada, Russia, Turkey, Spain, Germany and so on.



Production Line


Production Line


Inspection and quality control


Inspection and quality control


Packgage,Warehouse & Delivery


Packgage,Warehouse & Delivery




Product introduction


Product introduction




Applications



· Medical

· Smart home

· Security

· consumer electronics,

· household electronics

· industrial applications




Features:


•Piezo or eletro magnet

•Internally or external driven

•Terminals

        ○ Pins (red copper with tin plating)

        ○ Panel mount with lead wires

        ○ Screw terminals (brass with nickel plating)



Piezo Elements

The Piezo Element is the heart of a Piezo Buzzer. Also called Piezo Diaphragms and Piezo Benders, ceramic piezo plate essentially it is offered so that product manufacturers can produce sound within their own housing/enclosure designs. Esuntech has special expertise in piezo element production from very small units for sensors, to very large units for sirens. Specially formulated piezo ceramic discs are applied to a variety of base disc materials in order to suit most applications.

The basic element in all of these is a piezoelectric ceramic mounted on a metal diaphragm. When AC voltage is applied across the electrodes of the piezoelectric ceramic it expands and contracts at the frequency applied. This causes the piezo diaphragms to bend, producing sound waves. The metal diaphragm is usually brass, stainless steel or nickel alloy, thickness less than 0.5 mm. PZT ceramic material is used as the piezoelectric element. This element is designed so that the mechanical resonant frequency matches the frequency of the driving signal. By doping the PZT material, its piezoelectric characteristics can be modified: especially the hardness or softness of the material. The Esuntech piezo element provides performance in both sonic and ultrasonic applications and has found uses in applications beyond piezo buzzers for ultrasonic atomization, or as an impulser. Future directions include actuators and even piezo speakers.

Piezo Elements Sound Capabilities

The piezo disc is a low cost, low power consumption solution for creating good sound output at specific mid and high range frequencies. When combined with a plastic cone, or when layered in a bimorph configuration, the piezo disc can be a very powerful sound producer. We have additional information about the piezo element and piezo technology in our special Piezo Element Catalog, which can be found under the resources tab.


Piezoelectric Sounders / Buzzers


Piezoelectric Sounders / Buzzers are sound components prepared by incorporating a piezoelectric vibration plate in a plastic case (resonator). Conventional rated voltages are 3V, 5V, 12V, 24V.


Piezoelectric sounders are sound components which generate sound suitable for use as input signals (including multi-tone, melody and so on) without built-in oscillation circuits.


This characteristic allows them to be used in a wide range of applications. They come as the SMD type, which is optimal for small, high-density mounting, and the pin type which can be used for general purposes.


Piezoelectric buzzers are sound components which generate a monotone using a built-in oscillation circuit.



Pin type Piezoelectric Sounders



These products are optimized for operation confirmation sounds and warning sounds in household appliances such as air conditioners, washers and refrigerators.


A larger size is capable of generating higher sound pressure (louder sound).



SMD Piezoelectric Sounders



Smaller size,low current consumption, sound press level around 75dB - 85dB.


Optimized for small devices such as blood glucose meters, clinical thermometers, photoflashes for cameras, and portable terminals.



Electromagnetic buzzer and electromagnetic transducer



The electromagnetic buzzer is composed of an oscillator, an electromagnetic coil, a magnet, a vibrating diaphragm and a shell. After the power is turned on, the audio signal current generated by the oscillator passes through the electromagnetic coil, causing the electromagnetic coil to generate a magnetic field. The vibrating diaphragm periodically vibrates and produces sound under the interaction of the electromagnetic coil and the magnet. The electromagnetic transducer has the same working principle as the electromagnetic buzzer, but one less oscillating circuit.




The mechanical buzzer:



The mechanical buzzer uses a magnet to move a reed up and down quickly to emit a lower-pitch buzz. The sound pressure is lower than that of a piezoelectric buzzer. The usual working voltage is 1.2V 3V 6V 9V 12V 24V and the working frequency is 400 Hz. Widely used in doorbells and solar mouse repellers.




Services provided.


1. Free samples.

2.Products can be customized according to customer needs, and we have a strong R&D team.

3.The delivery time is stable. We have nearly 200 employees and a factory building of more than 10,000 square meters.

4.We promise that the quality of all products is equivalent to samples. A complete process system and quality inspection system can ensure fewer after-sales problems and reliable product quality.





FAQ


1. How to choose piezoelectric sounders / buzzer?


First of all, we need to know whether we need piezoelectric sounders or piezoelectric buzzers. This is very simple. If the driving voltage is DC, choose piezoelectric buzzer, and if the driving voltage is AC, choose piezoelectric sounders.


Secondly, we need to know their rated voltage, resonant frequency, SPL... The most important thing is the product size you need. With these parameters, our sales can recommend products that meet your requirements.


2. Is it necessary to distinguish the positive and negative poles when installing the buzzer / sounders?


 SMD


Of course it is necessary. When installing the buzzer / sounders with the + sign, be sure to connect the positive pole. If it is not installed in accordance with the signs, the buzzer may be directly damaged or the sound emitted may not meet the requirements.



3. Are they compliant with RoHS directive?


All Sound Components (Piezoelectric / Electromagnetic Sounders, Piezoelectric Diaphragms, Piezoelectric / Electromagnetic Buzzers) on our Website are compliant with  RoHS directive.


4. I would like to know procurement lead time


Please contact us when you need the latest lead time information because it will be changed depend on the market condition.


5. What about the Minimum Order Quantity?


Please confirm with the sales before placing the order. If there are raw materials in stock, 1,000 pieces of a single variety are acceptable.


6.Can you provide samples?


Of course, we can provide 5 free samples, and the sample delivery time is 7-10 days.





Notice


① The products must not be washed.


② Storage Condition:


The products should be stored in the room,where the temperature/humidity is stable.


And avoid such places where there are large temperature changes.


Please store the products at the following conditions:


Temperature:-10 to +40℃ Humidity: 15 to 85% R.H.


③  Expire Date on Storage:


Expire date (shelf life) of the products is six months after delivered under the conditions of a sealed and an unopened package.


Please use the products with  six months  after delivered.


④ Notice on product Storage:


   Please use the products immediately after the package is opened, because the characteristics may be reduced at quality.
