receiver ERV28070-W(SD153-BH)-ESUNTECH

Quantity:
  • ERV28070-W(SD153-BH)

28mmx7mm SD153 wired receiver 3110 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

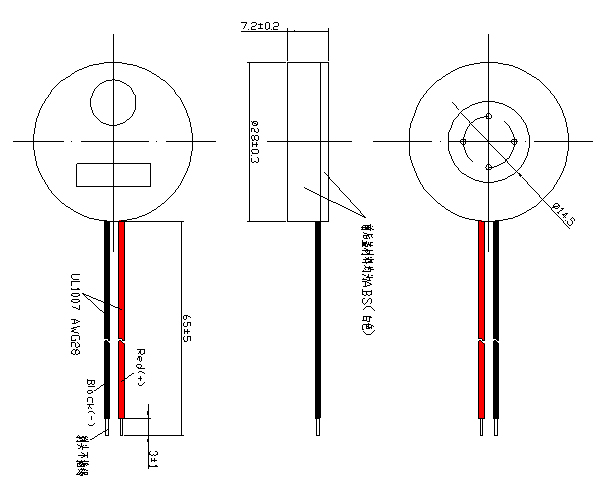

22 拷贝

Model ERV28070-W(SD153-BH)
Diameter Φ28X7.0mm
RATED POWER 10mW.
MAX POWER 20mW.
Input voltage 60mV (Sine wave) measured with IEC318 coupler
Impedance 150±20% Ω(@ 1KHz 1V)
SOUND PRESSURE LEVEL 93±2dB SPL @1KHz (0dB SPL=20μPa)
THD less than 5% at 1kHz ,with 0.3V

3
