35mmx17.5 mm SD150 receiver 3517 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.
| MODEL NO | ERV35170 |

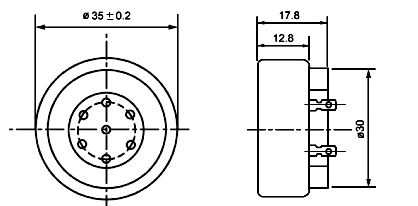

| Diameter | Φ35*17.5mm |
| RATED POWER | 10mW. |
| MAX POWER | 30mW. |
| Input voltage | 60mV (Sine wave) measured with IEC318 coupler |
| Impedance | 300±20% Ω(@ 1KHz) |
| SOUND PRESSURE LEVEL | 94±3dB SPL @1KHz (0dB SPL=20μPa) |
| THD | less than 5% at 300Hz-3400Hz |
35mmx17.5 mm SD150 receiver 3517 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.
| MODEL NO | ERV35170 |
| Diameter | Φ35*17.5mm |
| RATED POWER | 10mW. |
| MAX POWER | 30mW. |
| Input voltage | 60mV (Sine wave) measured with IEC318 coupler |
| Impedance | 300±20% Ω(@ 1KHz) |
| SOUND PRESSURE LEVEL | 94±3dB SPL @1KHz (0dB SPL=20μPa) |
| THD | less than 5% at 300Hz-3400Hz |
