receiver ERV35175MB(SD150TH) - ESUNTECH

Quantity:

35mmx17.5mm SD15TH receiver 3518 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

MODEL NO ERV35175MB(SD150TH)

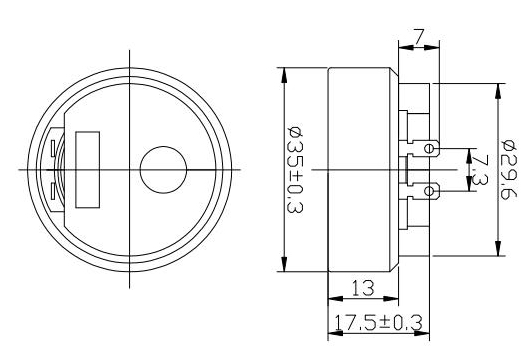

Diameter Φ35*17.5mm
RATED POWER 10mW.
MAX POWER 30mW.
Input voltage 60mV (Sine wave) measured with IEC318 coupler
Impedance 300±20% Ω(@ 1KHz)
SOUND PRESSURE LEVEL 94±3dB SPL @1KHz (0dB SPL=20μPa)

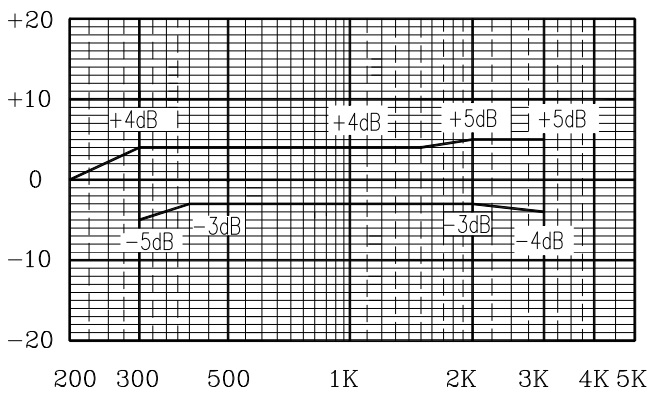

THD less than 5% at 300Hz-3400Hz

3
