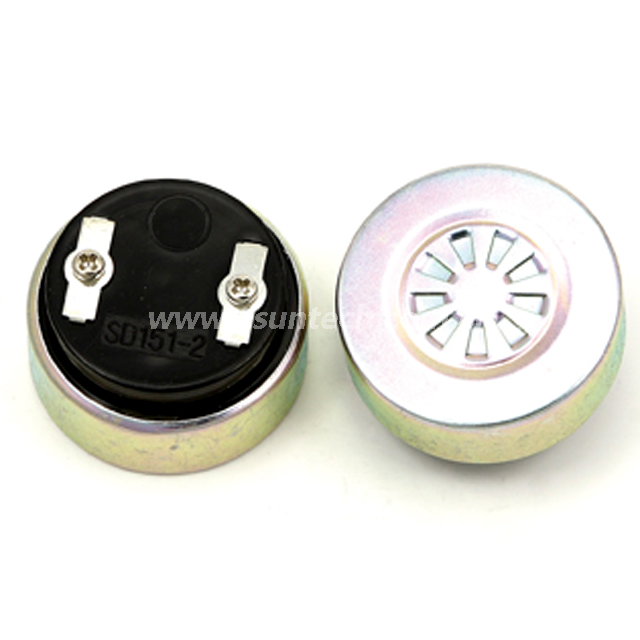

receiver ERV35180MB 35mm SD-1A - ESUNTECH

Quantity:

35mmx18mm SD-1A receiver 3518 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

HTB1TuTsKFXXXXbDXpXX760XFXXXN

MODEL NO ERV35180MB(SD-1A)

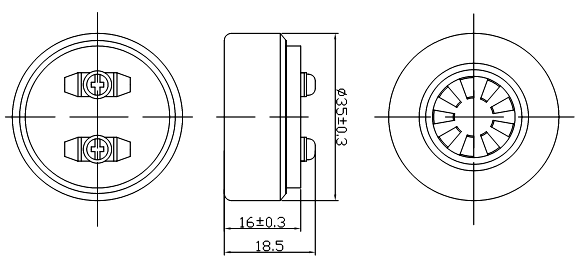

Diameter Φ35*18.5mm
RATED POWER 30mW.
MAX POWER 50mW.
Input voltage 60mV (Sine wave) measured with IEC318 coupler
Impedance 150±20% Ω(@ 1KHz 1V)

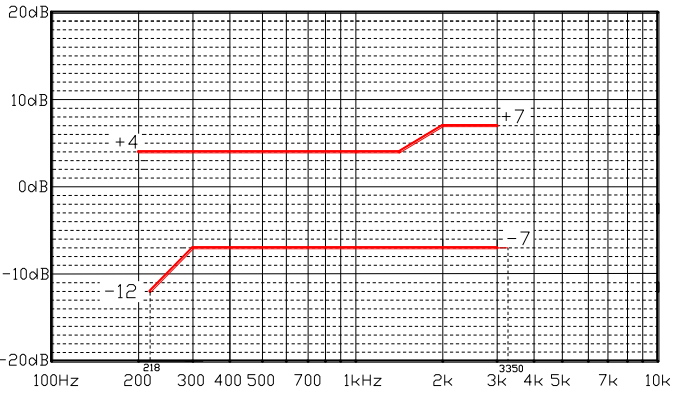

SOUND PRESSURE LEVEL 95±3dB SPL @1KHz (0dB SPL=20μPa)
THD less than 5% at 300Hz-3400Hz

3
