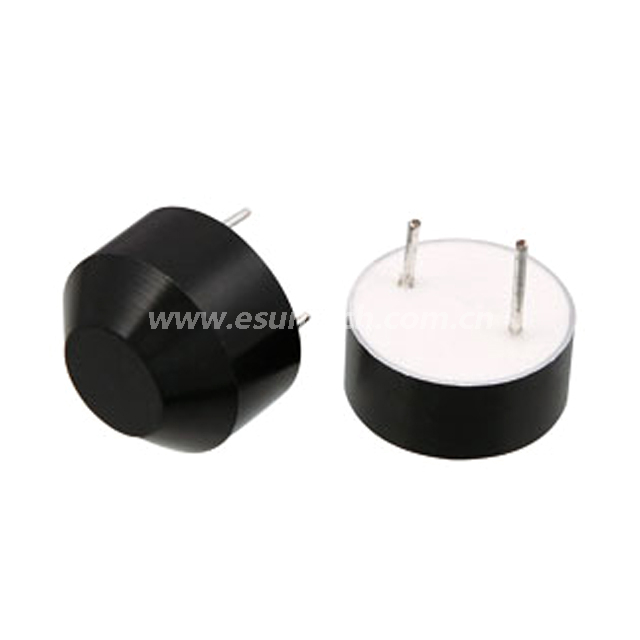

ultrasonic sensor EUS18F-40FS-BA waterproof sealed 40khz 18mm sensor - ESUNTECH

Quantity:
  • EUS18F-40FS-BA

Futures:

  • Compact and light weight

  • Wide angle High sensitivity and sound pressure level

  • High reliability

  • Excellent temperature and humidity durability

  • Low power consumption   Low cost

  • Waterproof and sealed

Application:

  • ·Distance meter

  • ·Automatic doors

  • parking sensor

  • ·Range finders

  • ·Burglar alarms

  • ·Remote control devices

  • ·mini drone

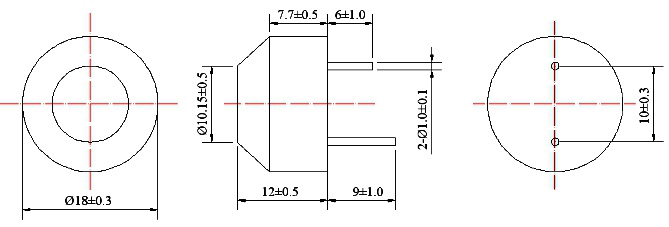

2

Model EUS18F-40FS-BA
Construction
Water proof
Using method
Dual use
Nominal Frequency KHz 40±1
S P L dB 100(10V/30cm/sine wave)
Sensitivity
         -80dBV/μMbar

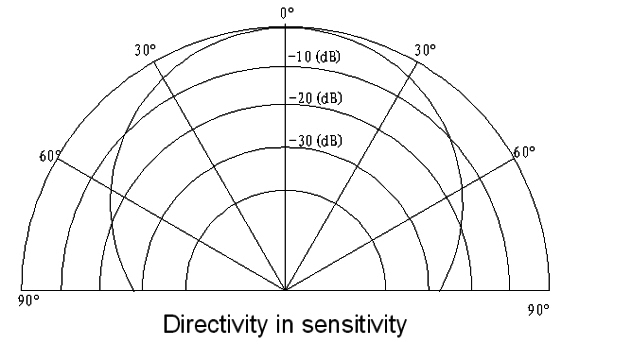

Directivity
100deg
Capacitance pF 2000±25%@1KHz
Detectable range m 0.3.3.5
Operating Temperature -30.+85
Housing material
Al

3231


33



Precautions:

·Sensors are precision instrument, please don't scratch the surface.

·Ultrasonic sensors have potential direction; please pay attention to the installation location.

·This sensor is designed for use in air. Do not use this sensor in fluid.

·To prevent sensor malfunctions, operational failure or any deterioration of its characteristics, do not use this sensor in the following, or similar conditions.

A. In strong shock or vibration.

B. In high temperature and humidity for a long time.

C. In corrosive gases or sea breeze.

D. In an atmosphere of organic solvents.

E. In a vacuum zone or hazardous areas.

F. In dirty and dusty environments that may contaminate the sensor front.
